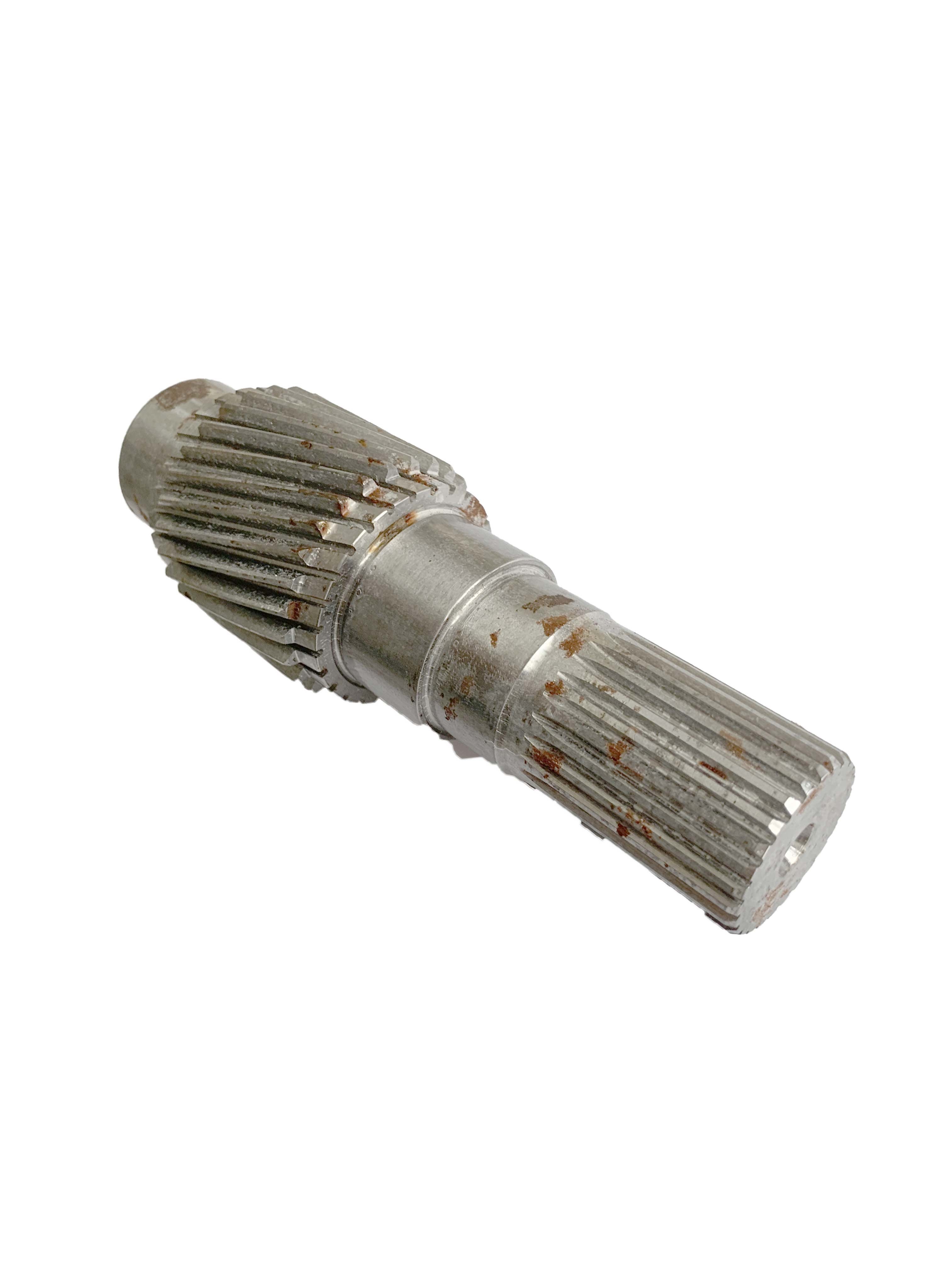

    Hardness 62HRC Gear Shafts Involute Tooth Profile Spur Gear Shaft Module 1.5

    Gear Shafts with tooth surface hardness 62HRC Shafts the tooth profile is the involute, The main heat treatment of the product is carburizing, a process in which carbon atoms penetrate into the steel surface layer. Its main classification according to the different containing carbon medium, carburizing can be divided into gas carburizing, solid carburizing, liquid carburizing, and carburizing (cyanide).


    Gas carburizing is to load the workpiece into a closed carburizing furnace, through the gas carburizing agent (methane, ethane, etc.) or liquid carburizing agent (kerosene or benzene, alcohol, acetone, etc.), decomposition of activated carbon atoms at high temperature, infiltrate the workpiece surface, in order to obtain a high carbon surface layer of carburizing operation process.


    Solid carburizing is the workpiece and solid carburizing agent (charcoal plus promoter) together in a closed carburizing box, the box into the heating furnace heating to carburizing temperature, and heat preservation for a certain time, so that the activated carbon atoms into the workpiece surface of one of the earliest carburizing method.


    Product specification:

    modulus1.79
    number of teeth85
    tooth depth9.39
    tooth width(44±0.1)
    weight1.2kg-2.0kg
    material8620H
    appearancecircle
    gear surface hardness58-63
    tooth line shapeinvolute
    applicationengineering machinery
    product description:engineering core components
    accuracy of gear8-10
    processing module1.5-1.8
    gear typeinvolute external spline
    materialslow carbon alloy steel
    surface treatmentcarburizing and quenching
    processing technicforging+machine work+heat treatment
    fabricating machinerymechanical press+digital controlled lathe+machining center
    checkout equipmentKlingberg Gear Btesting Center+Zeiss CMM+Mitoyo contourgraph

    Hardness 62HRC Gear Shafts Involute Tooth Profile Spur Gear Shaft Module 1.5Hardness 62HRC Gear Shafts Involute Tooth Profile Spur Gear Shaft Module 1.5Hardness 62HRC Gear Shafts Involute Tooth Profile Spur Gear Shaft Module 1.5

    Related products:

    engineering shaft
    shaft mechanical engineering
    electric motor shafts
    mechanical shaft
    machine shaft
    gears and shafts
    spur gear shaft
    spline gear shaft
    machine shaft
    external involute spline
    involute shaft

    FAQ:

    Q:Can we produce according to the sample?

    A: Yes, we will produce according to customers' samples or technical drawings.


    Q: Why do customers choose your products?

    A:The company has many years of experience, reliable quality, reasonable price, professional technology and sound after-sales service commitment.


    Q:What's your sample?

    A: We will make samples according to the drawings, which can be viewed, but the customer has to pay the relevant fees of samples.
