0.163kg Parking Gear Ring P Mode Involute Teeth 9 20CrMnTi

Jiangsu Weiying Machine Co. Ltd.
Contact Now
    Buy cheap 0.163kg Parking Gear Ring P Mode Involute Teeth 9 20CrMnTi from wholesalers

    Buy cheap 0.163kg Parking Gear Ring P Mode Involute Teeth 9 20CrMnTi from wholesalers
    • Buy cheap 0.163kg Parking Gear Ring P Mode Involute Teeth 9 20CrMnTi from wholesalers

    0.163kg Parking Gear Ring P Mode Involute Teeth 9 20CrMnTi

    Ask Lasest Price
    Brand Name : WINNER
    Certification : IATF16949
    Price : CNY+100-400+YUAN
    Payment Terms : T/T, MoneyGram
    Supply Ability : 1200+SET+DAY
    Delivery Time : 5-8 workdays
    • Product Details
    • Company Profile

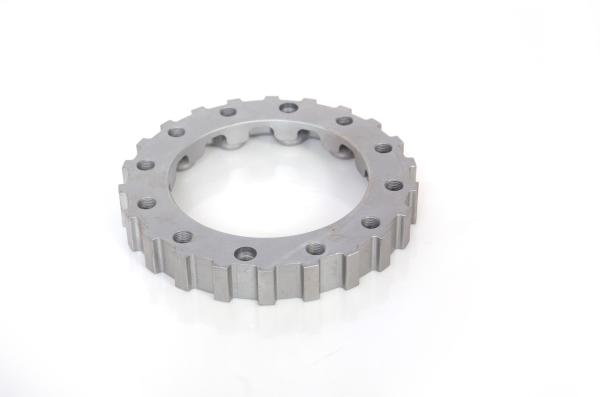

    0.163kg Parking Gear Ring P Mode Involute Teeth 9 20CrMnTi

    The gear accuracy is 7 when the weight is 0.163kg, The material chosen for this product is 20CrMnTi, which is a kind of carburized carbon steel. Carburized carbon steel is usually low carbon steel with carbon content of 0.17%-0.24%. It is Cr Mn Ti steel in medium hardenability carburized carbon steel. Its hardenability is high. Under the condition of ensuring quenching, it especially has high low temperature impact toughness. 20CrMnTi surface carburizing hardened steel.


    Good machinability, small deformation and good fatigue resistance. The main uses are: used for shaft, piston parts and various special parts of automobiles and airplanes.


    20CrMnTiH gear steel is used to manufacture important parts such as gear, gear ring, gear shaft, cross head, which bear high speed and heavy load, impact and friction with cross section less than 30mm.


    Product specification:

    modulus6.1-8.7
    number of teeth8-11
    tooth depth4.25-5.15
    tooth width8-19
    weight0.153KG-0.261KG
    material20CrMnTiH/21NiCrMo5H
    appearancecircle
    gear surface hardness58-62HRC
    tooth line shapeinvolute
    applicationP mode in the car
    product description:parking gear
    accuracy of gear7-10
    processing module1-9
    gear typeparking tooth+involute internal spline
    materialslow carbon alloy steel
    surface treatmentcarburizing and quenching
    processing technicforging+machine work+heat treatment
    fabricating machinerymechanical press+CNC Lathe
    checkout equipmentKlingberg Gear Btesting Center

    0.163kg Parking Gear Ring P Mode Involute Teeth 9 20CrMnTi0.163kg Parking Gear Ring P Mode Involute Teeth 9 20CrMnTi0.163kg Parking Gear Ring P Mode Involute Teeth 9 20CrMnTi,

    Related products:

    gear ring
    involute gear
    gear tooth profile
    involute teeth
    mechanical gear ring
    involute gear teeth
    involute tooth
    involute tooth profile
    involute gear profile
    involute gear tooth
    transmission ring

    FAQ:

    Q:What are your packing terms?

    A: Generally speaking, we will pack properly according to your requirements.


    Q:What are your terms of payment?

    A:generally speaking, telegraphic transfer 30% serves as deposit, 70% is before deliver, but specific circumstance, want to seek advice from our business branch, according to different actual situation, differ somewhat.


    Q: What are your company's main products?

    A: Automotive precision forging products.
