M1 Parking Gear IATF 16949 Involute Tooth Profile 0.22kg

Jiangsu Weiying Machine Co. Ltd.
Contact Now
    Buy cheap M1 Parking Gear IATF 16949 Involute Tooth Profile 0.22kg from wholesalers

    Buy cheap M1 Parking Gear IATF 16949 Involute Tooth Profile 0.22kg from wholesalers
    • Buy cheap M1 Parking Gear IATF 16949 Involute Tooth Profile 0.22kg from wholesalers

    M1 Parking Gear IATF 16949 Involute Tooth Profile 0.22kg

    Ask Lasest Price
    Brand Name : WINNER
    Certification : IATF16949
    Price : CNY+100-400+YUAN
    Payment Terms : T/T, MoneyGram
    Supply Ability : 1200+SET+DAY
    Delivery Time : 5-8 workdays
    • Product Details
    • Company Profile

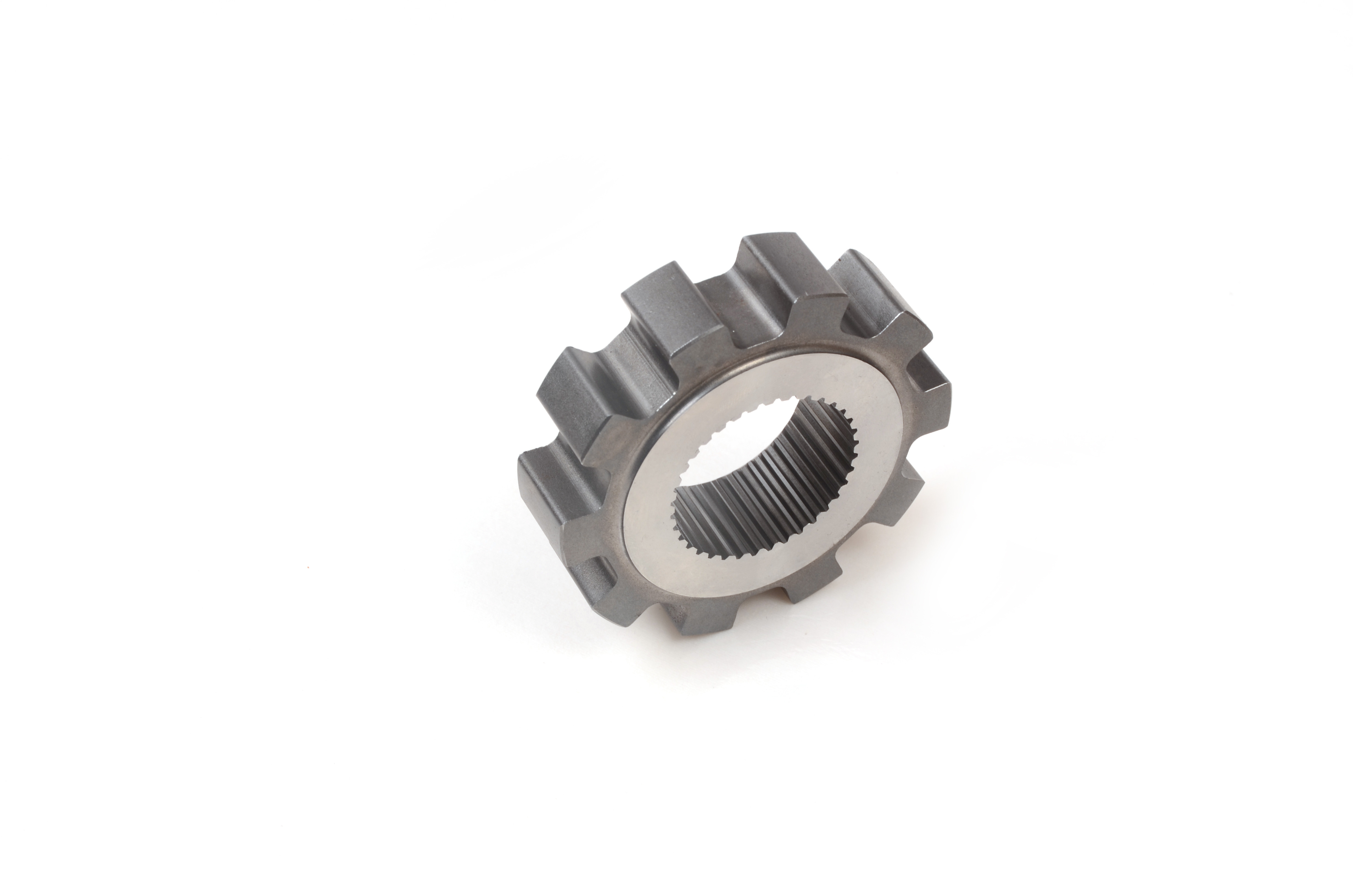

    M1 Parking Gear IATF 16949 Involute Tooth Profile 0.22kg

    The weight of parking gear is 0.22kg, the processing modulus is 1, The processing technology of this product includes forging, machining and heat treatment, among which heat treatment refers to the metal material in solid state, by means of heating, heat preservation and cooling, change the chemical composition and structure of the material surface or inside, to obtain the required performance of a metal hot processing technology.


    Quenching: refers to the heat treatment process of heating steel to a temperature above Ac3 or Ac1 (the lower critical point temperature of steel), keeping it for a fixed time, and then obtaining martensite (or bainite) structure at an appropriate cooling rate.


    Common quenching processes include salt bath quenching, martensite fractional quenching, bainite isothermal quenching, surface quenching and local quenching.


    Product specification:

    modulus6.1-8.7
    number of teeth8-11
    tooth depth4.25-5.15
    tooth width8-19
    weight0.153KG-0.261KG
    material20CrMnTiH/21NiCrMo5H
    appearancecircle
    gear surface hardness58-62HRC
    tooth line shapeinvolute
    applicationP mode in the car
    product description:parking gear
    accuracy of gear7-10
    processing module1-9
    gear typeparking tooth+involute internal spline
    materialslow carbon alloy steel
    surface treatmentcarburizing and quenching
    processing technicforging+machine work+heat treatment
    fabricating machinerymechanical press+CNC Lathe
    checkout equipmentKlingberg Gear Btesting Center

    M1 Parking Gear IATF 16949 Involute Tooth Profile 0.22kgM1 Parking Gear IATF 16949 Involute Tooth Profile 0.22kgM1 Parking Gear IATF 16949 Involute Tooth Profile 0.22kg

    Related products:

    gear ring
    involute gear
    gear tooth profile
    involute teeth
    mechanical gear ring
    involute gear teeth
    involute tooth
    involute tooth profile
    involute gear profile
    involute gear tooth
    transmission ring

    FAQ:

    Q:What are your packing terms?

    A: Generally speaking, we will pack properly according to your requirements.


    Q:What are your terms of payment?

    A:generally speaking, telegraphic transfer 30% serves as deposit, 70% is before deliver, but specific circumstance, want to seek advice from our business branch, according to different actual situation, differ somewhat.


    Q: What are your company's main products?

    A: Automotive precision forging products.
