    CMM CVT Pulley Shaft IATF16949 Tooth Splined Pulley

    Ask Lasest Price
    Brand Name : WINNER
    Model Number : CVT 250
    Certification : IATF16949
    Price : CNY+100-400+YUAN
    Payment Terms : T/T, MoneyGram
    Supply Ability : 1200+SET+DAY
    Delivery Time : 5-8 workdays
    • Product Details
    • Company Profile

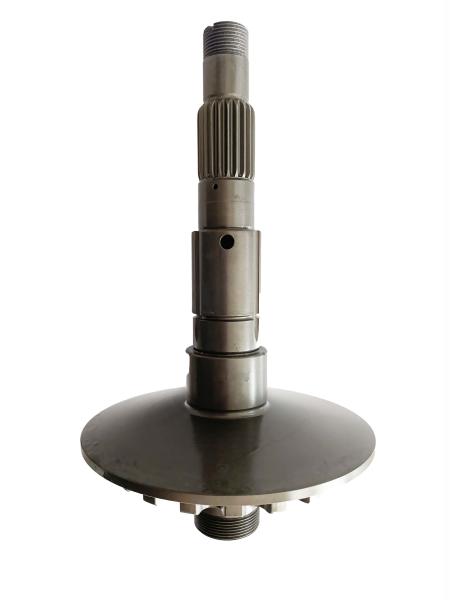

    CMM CVT Pulley Shaft IATF16949 Tooth Splined Pulley

    The tooth height of CVT PULLEY SHAFT is 7 and the tooth width is 25, The detection equipment of the product is Klinberg gear detection center, Zeiss three coordinates, Sanfeng profilometer, among which the role of three coordinates is very rich, three coordinates namely three coordinate measuring machine, abbreviation CMM, it refers to the point data returned by the probe system in the three-dimensional measurable space range,


    Three coordinates measuring instrument can be defined as a kind of can make three direction of the detector, can be in three perpendicular guide rail, the detector to contact or non-contact transmission signals, such as three axis displacement measurement system (such as optical ruler) by the data processor or calculation work pieces, such as computers, each point coordinates (X, Y, Z) and various functions of measuring instruments. The measurement function of CMM should include dimensional accuracy measurement, positioning accuracy measurement, geometric accuracy measurement and contour accuracy measurement.


    Product specification:

    boundary dimension(φ150-φ180)x(60-270)
    modulus1-3
    number of teeth10-36
    tooth depth1-8
    tooth width10-45
    weight2.5-6kg
    material20CrMoH/20CrMo5
    heat treatmentcarburizing and quenching
    gear surface hardness58-62HRC
    applicationsplined coupling/signal collection/parking
    product description:CVT transmission core components
    accuracy of gear7-10
    processing module1-2
    gear typesignal tooth+parking tooth+involute external spline
    materialslow carbon alloy steel
    surface treatmentcarburizing and quenching
    processing technicforging+machine work+heat treatment
    fabricating machinerymechanical press+CNC Lathe+machining center+Rub tooth machine
    +gear hobbing machine
    checkout equipmentKlingberg Gear Btesting Center+Zeiss CMM+Mitoyo contourgraph

    CMM CVT Pulley Shaft IATF16949 Tooth Splined PulleyCMM CVT Pulley Shaft IATF16949 Tooth Splined PulleyCMM CVT Pulley Shaft IATF16949 Tooth Splined Pulley

    Related products:

    shaft and pulley
    pulley for motor shaft
    drive shaft pulley
    drive pulley shaft
    splined pulley
    pulley on shaft
    sheave shaft
    spline shaft stock
    6 spline shaft
    spline gear shaft
    metric spline shaft
    cvt shaft
    transmission input shaft
    shaft heat treatment
    forging shaft
    shaft forging
    alloy shaft
    drive shaft gear
    motor shaft gear
    custom splined shaft

    FAQ:

    Q: Why do customers choose your products?

    A: The company has many years of experience, reliable quality, reasonable price, professional technology and sound after-sales service commitment.


    Q: What are your company's main products?

    A: Automotive precision forging products.


    Q: Can you send me a sample?

    A: Yes, we can send you the sample to check the quality, but you need to pay all the cost of the sample.


    Q: How to get the best price?

    A: You can consult our commercial department for pricing.
