    Disk Aluminium Heat Treatment Process Zeiss CMM Compressor Plate

    Ask Lasest Price
    Brand Name : WINNER
    Certification : IATF16949
    Price : CNY+100-400+YUAN
    Payment Terms : T/T, MoneyGram
    Supply Ability : 1200+SET+DAY
    Delivery Time : 5-8 workdays
    • Product Details
    • Company Profile

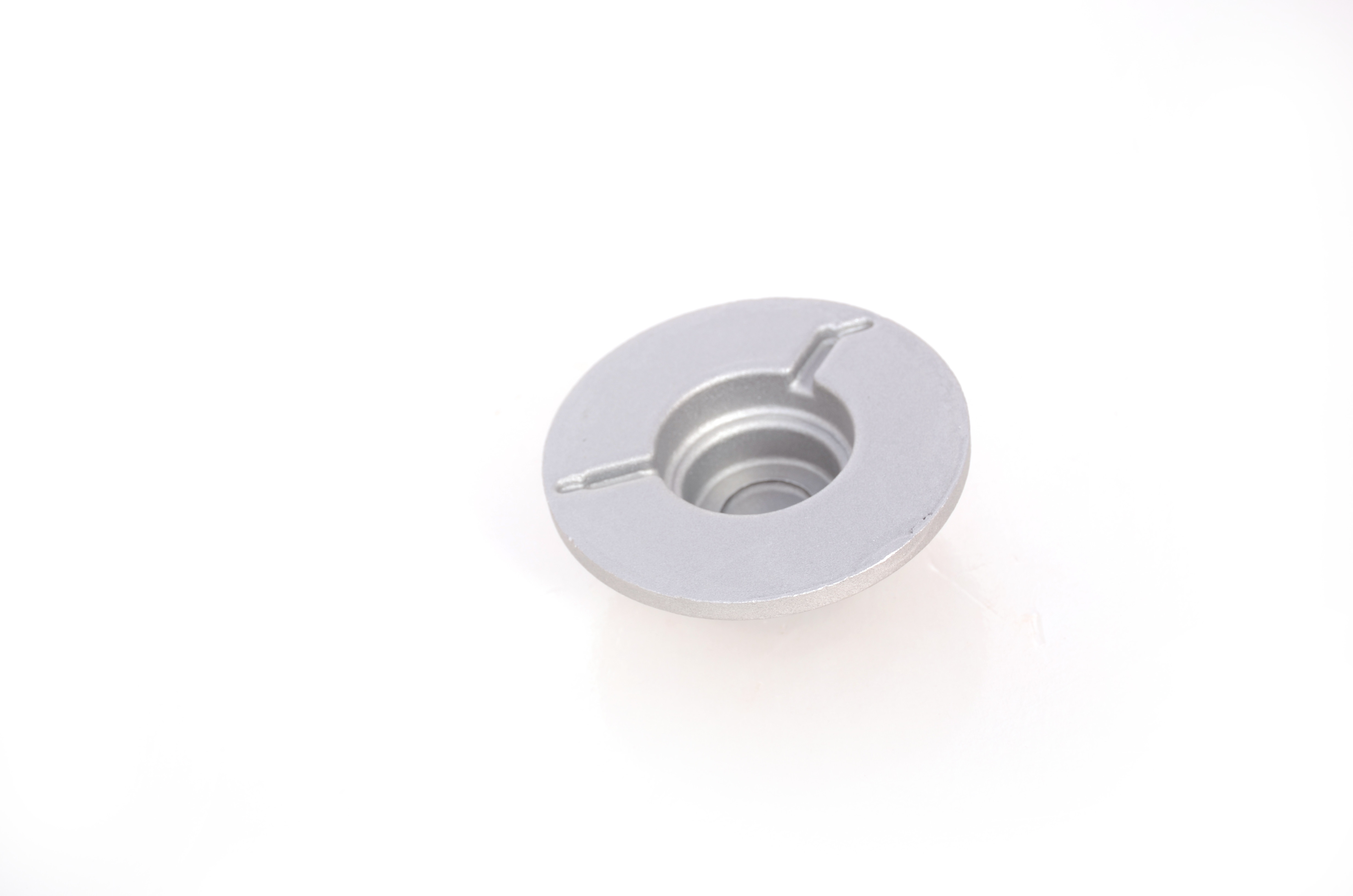

    Disk Aluminium Heat Treatment Process Zeiss CMM Compressor Plate

    Size( φ 80- φ 120) x (20-60) scroll compressor disk processing equipment is mainly press + CNC lathe, The main processing equipment of this product is press and CNC lathe, among which press is also known as hydraulic press and hydraulic press.


    The press consists of four parts: upper pressure four column oil press; Combined control cabinet; Electric heating system and thermal insulation device; Die conveying bench.


    The press shall have reliable structural stiffness and deformation resistance. The position on the hydraulic station and the pressure row shall be equipped with mold hoisting connection device.


    The technical parameters are as follows: nominal pressure 190T; Effective workbench area 3000 × 750 mm2; Pressure discharge movement speed: 75 ~ 100 mm / S; Maximum opening and closing distance 550 mm (excluding heating plate); Pressure holding time 8h (workpiece 130 ℃); The height of press base is 0.5 ~ 0.55M; Flatness of pressure drain and base: 0.2 mm.


    Product specification:

    boundary dimension(φ80-φ120)x(20-60)
    weight0.2-0.7kg
    material4032/6082
    heat treatmentsolution+ageing
    processing technicforging+heat treatment+machine work+shot-blasting
    product description:vibrational pattern of the orbiter
    materials4032/6082
    processing technicforging+machine work+heat treatment
    fabricating machinerypress+CNC Lathe
    checkout equipmentZeiss CMM+Mitoyo contourgraph

    Disk Aluminium Heat Treatment Process Zeiss CMM Compressor PlateDisk Aluminium Heat Treatment Process Zeiss CMM Compressor PlateDisk Aluminium Heat Treatment Process Zeiss CMM Compressor Plate

    Related products:

    cnc disc
    compressor valve plate
    compressor plate
    scroll compressor parts
    aluminium heat treatment process
    forging body
    aluminium alloy 6082
    heat treatment aluminium alloy
    aluminium alloy 4032
    internal spline gear

    FAQ:

    Q:What's your sample?

    A: We will make samples according to the drawings, which can be viewed, but the customer has to pay the relevant fees of samples.


    Q:How do you make our business long-term and a good relationship?

    A:1.we maintain good quality and competitive prices to ensure the interests of our customers;

    2.We see every customer as a friend, sincere business with them, friends, no matter where they come from.


    Q: Have all your goods been tested before delivery so far?

    A: Yes, we will test the product quality according to customer's requirements before delivery.
